ZipStream Monitor

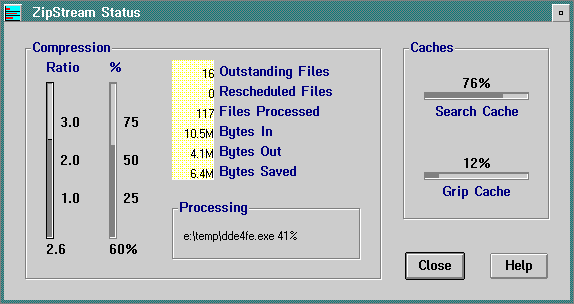

The ZipStream Monitor utility is used to monitor the performance and
operation of ZipStream's compression system.  When run it will display a
window, as shown below, that will be continuously updated at approximately
1.5 second intervals.

If this window is hidden or minimised the monitor will display a smaller
window containing compacted information as shown below:

The compacted view reports (in the following order): Outstanding
Files,Compression Ratio, Compression Percentage, Current File.

The ZipStream Monitor main view reports the following information:

Outstanding Files

This is the number of files that are awaiting background compression in
ZipStream.

Rescheduled Files

This is the number of files that have been rescheduled for background
compression in ZipStream.

Files Processed

This is the total number of files that have been compressed by the
compression system since the last system boot.

Bytes In

This is the total number of uncompressed bytes compressed by the
compression system since the last system boot.

Bytes Out

This is the total number of compressed bytes output by the compression
system since the last system boot.

Bytes Saved

This is the total number of bytes saved by the compression system since
the last system boot.

Compression Ratio

This is the overall compression ratio statistic which has been achieved
since the last system boot.  Both Ratio and Percentage information is
reported.  A compression ratio of 50% means that the files have been
reduced to half their original size or a 2:1 reduction.  The higher the
value here, the better the compression system is performing e.g.  67%
means that files have been reduced in size to one third of their original
size.

Search Cache

This is the search cache hit ratio statistic, which has been collected
since the last system boot.  The higher the value here, the better the
search cache is performing.  ZipStream's search cache is used to optimise
access to files.

Grip Cache

This information provides utilisation information on ZipStream's grip
cache.

The grip cache is a part of ZipStream's Virtual File Cache that is used to
keep decompressed files in memory after they are no longer in use in the
hope that the user or application may request the information again
shortly. After one minute the contents of this cache are freed so that the
memory can be used for other purposes and not have a negative impact on
system performance.

Normally this utilisation value should be low or zero with infrequent
peaks of up to 75 percent. Should this value be consistently high, you may
need to increase your grip cache allocation via the ZipStream control
panel.

Processing File

This is the path name of the current file being processed by the
background compression system.  If no file is currently being processed,
then the monitor will report 'sleeping'.
